| Products' type: | DC geared motor |

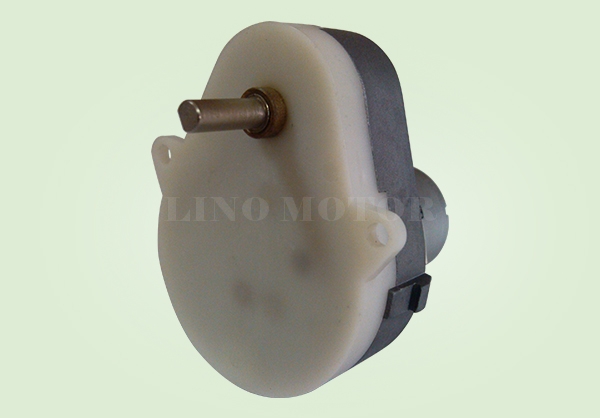

| Model: | GM48B GM48B.pdf |
| Sort: | Pear shape DC geared motor |
| Typical applications: | Coffee machine, communications-equipment, ACU-RITE,induced garbage can, electronic lock, optical equipment, medical instrumentation, office equipment, household appliances,etc… |
| Weight: | 140g (approx) |
| 型号 MODEL | 电压 VOLTAGE | 空载 AT NO LOAD | 最大效率点 AT MAXIMUM EFFICIENCY | 堵转 AT STALL | ||||||
| 转速 SPEED | 电流 CURRENT | 转速 SPEED | 电流 CURRENT | 转矩 TORQUE | 转矩 TORQUE | 电流 CURRENT | ||||
| VDC | RPM | A | RPM | A | mN.m | kg.cm | mN.m | kg.cm | A | |
| GM48B2700-370 | 12 | 1.15 | 0.045 | 0.82 | 0.11 | 4478.6 | 45.700 | 15582 | 159.000 | 0.28 |
| 可配马达类型 Base motor option | RF500,RS520,RS528,RF370 | |||||||||
| 标准速比 Gear ratio option | 10, 26, 68.6, 114.5, 216, 235.6, 300, 617, 1031, 1944, 2700 | |||||||||
| 备注 Note | 性能参数及输出轴可以根据客户要求更改. The specifications and output shaft can be changed as customer's request. | |||||||||
| 包装信息 Packing detail | 纸箱,尺寸:38X35.5X34CM;100台/箱;毛重:16Kg. Carton, Size: 38X35.5X34CM;100pcs/carton; G.W:16Kg. | |||||||||
