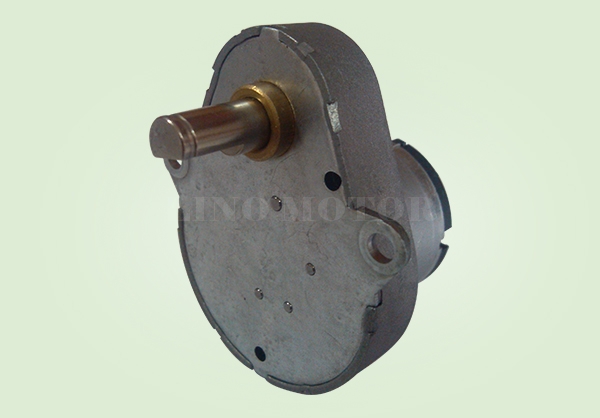

| Products' type: | DC geared motor |
| Model: | GM48 GM48.pdf |
| Sort: | Round shape DC geared motor |
| Typical applications: | Coffee machine, communications-equipment, ACU-RITE,induced garbage can, electronic lock, optical equipment, medical instrumentation, office equipment, household appliances,etc… |
| Weight: | 160g (approx) |
| 型号 MODEL | 电压 VOLTAGE | 空载 AT NO LOAD | 最大效率点 AT MAXIMUM EFFICIENCY | 堵转 AT STALL | ||||||
| 转速 SPEED | 电流 CURRENT | 转速 SPEED | 电流 CURRENT | 转矩 TORQUE | 转矩 TORQUE | 电流 CURRENT | ||||
| VDC | RPM | A | RPM | A | mN.m | kg.cm | mN.m | kg.cm | A | |
| GM48453-520 | 24 | 11 | 0.03 | 8.7 | 0.12 | 1264.2 | 12.900 | 6232.8 | 63.600 | 0.47 |
| 可配马达类型 Base motor option | RF500,RS520,RS528 | |||||||||
| 标准速比 Gear ratio option | 11, 19.5, 47.3, 189,232, 290, 453.6, 529, 567, 661.5, 1221, 1526.5 | |||||||||
| 备注 Note | 性能参数及输出轴可以根据客户要求更改. The specifications and output shaft can be changed as customer's request. | |||||||||
| 包装信息 Packing detail | 纸箱,尺寸:38X35.5X34CM;100台/箱;毛重:18Kg. Carton, Size: 38X35.5X34CM;100pcs/carton; G.W:18Kg. | |||||||||
