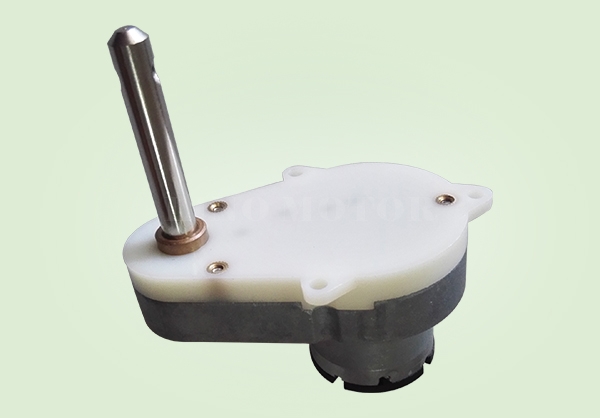

| Products' type: | DC geared motor |
| Model: | GM48L GM48L.pdf |
| Sort: | Pear shape DC geared motor |
| Typical applications: | Coffee machine, communications-equipment, ACU-RITE,induced garbage can, electronic lock, optical equipment, medical instrumentation, office equipment, household appliances,etc… |
| Weight: | 180g (approx) |
| 型号 MODEL | 电压 VOLTAGE | 空载 AT NO LOAD | 最大效率点 AT MAXIMUM EFFICIENCY | 堵转 AT STALL | ||||||
| 转速 SPEED | 电流 CURRENT | 转速 SPEED | 电流 CURRENT | 转矩 TORQUE | 转矩 TORQUE | 电流 CURRENT | ||||
| VDC | RPM | A | RPM | A | mN.m | kg.cm | mN.m | kg.cm | A | |
| GM48L2700-3324 | 24 | 2.2 | 0.045 | 1.72 | 0.149 | 6321 | 64.500 | 28714 | 293.000 | 0.28 |
| 可配马达类型 Base motor option | RF500,RS520,RS528,RS360,RS380,RS390 | |||||||||
| 标准速比 Gear ratio option | 1031, 1944, 2700 | |||||||||
| 备注 Note | 性能参数及输出轴可以根据客户要求更改. The specifications and output shaft can be changed as customer's request. | |||||||||
| 包装信息 Packing detail | 纸箱,尺寸:52X36X36CM;100台/箱;毛重:21Kg. Carton, Size: 52X36X36CM;100pcs/carton; G.W:21Kg. | |||||||||
