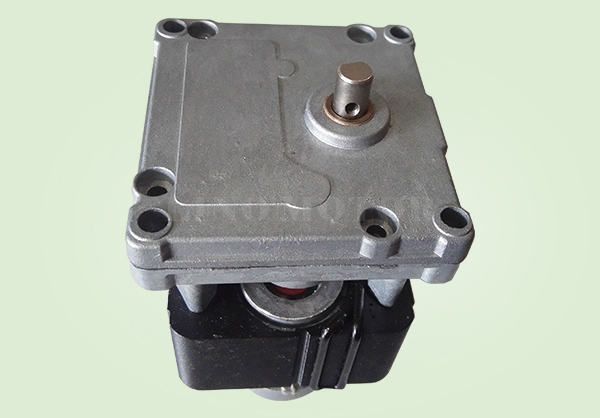

| Products' type: | AC geared motor |
| Model: | GM7570SP61 GM7570SP61.pdf |
| Sort: | AC shaded pole geared motor |
| Typical applications: | Vending machine, Valves, coffee machine, communications-equipment, ACU-RITE,induced garbage can, medical instrumentation, office equipment, household appliances,etc… |
| Weight: | 1230g (approx) |
| 参数 Specifications | 单位 UNIT | GM7570SP61 | ||||||
| 额定电压 Voltage | VAC | 24; 110; 220 | ||||||
| 频率 Frequency | Hz | 50/60 | ||||||
| 输入功率 Input | W | 50W | ||||||
| 电流 Current | A | 4.4(24V) | ||||||
| 转速范围 Speed range | RPM | 20 | ||||||
| 速比范围 Gear ratio | 139.7 | |||||||
| 噪音 Noise | dB | <=60 | ||||||
| 绝缘耐压 Dielectric strength | AC1500V / 1SEC | |||||||
| 转向 Direction of rotation | CCW,CW | |||||||
| 备注 Note | 电压及输出轴可以根据客户要求更改. Voltage and output shaft can be changed as customer's request. | |||||||
| 包装信息 Packing detail | 纸箱,尺寸:32X25X17CM;18台/箱;毛重:24Kg. Carton, Size: 32X25X17CM;18pcs/carton; G.W:24Kg. | |||||||
