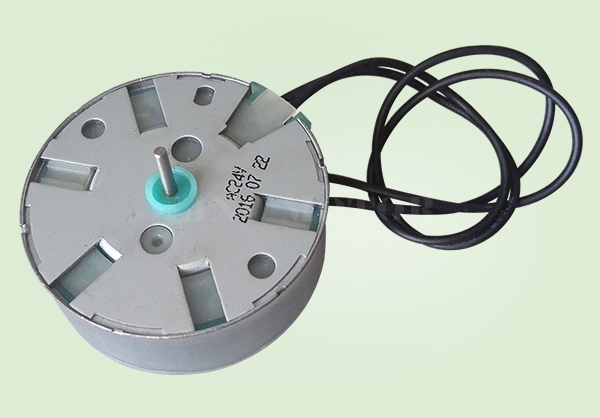

| Products' type: | Synchronous motor |
| Model: | SMS48500 SMS48.pdf |
| Sort: | Round shape AC synchronous motor |
| Typical applications: | Artware,optical equipment, medical instrumentation, office equipment, household appliances,etc… |
| Weight: | 100g (approx) |
| 参数 Specifications | 单位 UNIT | SMS48500 | ||||||
| 额定电压 Voltage | VAC | 24; 120; 220 | ||||||
| 频率 Frequency | Hz | 50/60 | ||||||
| 输入功率 Input | W | <=3 | ||||||
| 电流 Current | A | 0.012(220V) | ||||||
| 转速 Speed | RPM | 500 (50Hz) | ||||||
| 力矩 Torque | g.cm | >=60g.cm | ||||||
| 噪音 Noise | dB | 60 | ||||||
| 绝缘耐压 Dielectric strength | AC1800V / 1 SEC | |||||||
| 转向 Direction of rotation | CW；CCW； CW/CCW（FREE） | |||||||
| 备注 Note | 电压及输出轴可以根据客户要求更改. Voltage and output shaft can be changed as customer's request. | |||||||
| 包装信息 Packing detail | 纸箱 Carton | |||||||
