| Products' type: | DC geared motor |

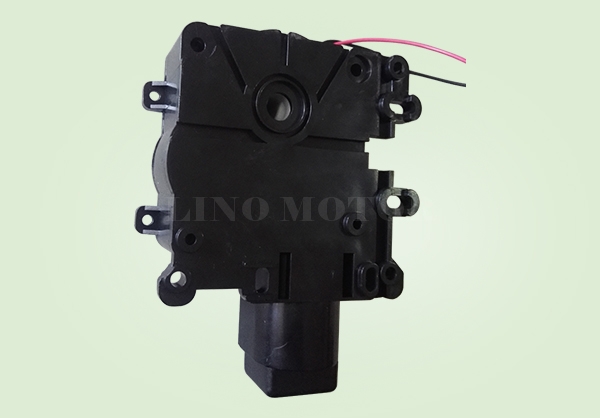

| Model: | GMF9191 GMF9191.pdf |
| Sort: | Square shape DC geared motor |
| Typical applications: | valve,vending machine,coffee machine,communications-equipment, ACU-RITE,induced garbage can, electronic lock, optical equipment, medical instrumentation, office equipment, household appliances,etc… |
| Weight: | 202g (approx) |
| 型号 MODEL | 电压 VOLTAGE | 空载 AT NO LOAD | 最大效率点 AT MAXIMUM EFFICIENCY | 堵转 AT STALL | ||||||
| 转速 SPEED | 电流 CURRENT | 转速 SPEED | 电流 CURRENT | 转矩 TORQUE | 转矩 TORQUE | 电流 CURRENT | ||||
| VDC | RPM | A | RPM | A | mN.m | kg.cm | mN.m | kg.cm | A | |
| GMF9191-360 | 12 | 20.5 | 0.1 | 15.4 | 270 | 392 | 4.000 | 1519 | 15.500 | 0.81 |
| 可配马达类型 Base motor option | RS360,RS365 | |||||||||
| 标准速比 Gear ratio option | 252 | |||||||||
| 备注 Note | 性能参数及输出轴可以根据客户要求更改. The specifications and output shaft can be changed as customer's request. | |||||||||
| 包装信息 Packing detail | 纸箱,尺寸:52X36X36CM;50台/箱;毛重:12Kg. Carton, Size: 52X36X36CM;50pcs/carton; G.W:12Kg. | |||||||||
