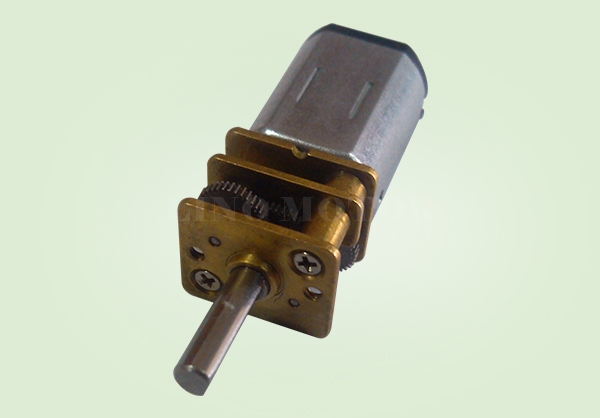

| Products' type: | DC geared motor |
| Model: | GMF12 GMF12.pdf |
| Sort: | Square shape DC geared motor |
| Typical applications: | Electronic lock, optical equipment, medical instrumentation, office equipment, Stereo Equipment,household appliances,sexual equipments, Vedio Game |
| Weight: | 10g (approx) |
| 型号 MODEL | 电压 VOLTAGE | 空载 AT NO LOAD | 最大效率点 AT MAXIMUM EFFICIENCY | 堵转 AT STALL | ||||||
| 转速 SPEED | 电流 CURRENT | 转速 SPEED | 电流 CURRENT | 转矩 TORQUE | 转矩 TORQUE | 电流 CURRENT | ||||
| VDC | RPM | A | RPM | A | mN.m | kg.cm | mN.m | kg.cm | A | |
| GMF12298N2009170 | 4.5 | 53 | 0.05 | 41.87 | 0.169 | 41.944 | 0.428 | 199.724 | 2.038 | 0.63 |
| 可配马达类型 Base motor option | N20,N30 | |||||||||
| 标准速比 Gear ratio option | 5，10，15，30，35，50，75，100，150，210，256，298，380，429（L= 9mm) | |||||||||
| 备注 Note | 性能参数及输出轴可以根据客户要求更改. The specifications and output shaft can be changed as customer's request. | |||||||||
| 包装信息 Packing detail | 纸箱,尺寸:31X24X31CM;800台/箱;毛重:11.5Kg. Carton, Size: 31X24X31CM;800pcs/carton; G.W:11.5Kg. | |||||||||
