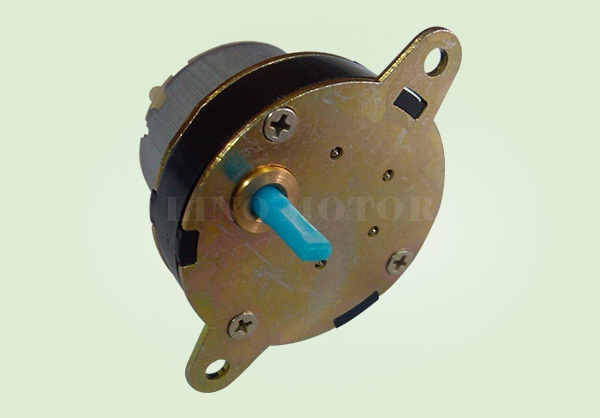

| Products' type: | DC geared motor |
| Model: | GM40 GM40.pdf |
| Sort: | Round shape DC geared motor |
| Typical applications: | Artware,electronic lock, optical equipment, medical instrumentation, office machines, household appliances,etc… |
| Weight: | 75g (approx) |
| 型号 MODEL | 电压 VOLTAGE | 空载 AT NO LOAD | 最大效率点 AT MAXIMUM EFFICIENCY | 堵转 AT STALL | ||||||
| 转速 SPEED | 电流 CURRENT | 转速 SPEED | 电流 CURRENT | 转矩 TORQUE | 转矩 TORQUE | 电流 CURRENT | ||||
| VDC | RPM | A | RPM | A | mN.m | kg.cm | mN.m | kg.cm | A | |
| GM40136.5-500 | 12 | 33.5 | 0.02 | 27.7 | 0.1 | 166.6 | 1.700 | 984.9 | 10.050 | 0.47 |
| 可配马达类型 Base motor option | RF300,RF500 | |||||||||
| 标准速比 Gear ratio option | 42.2, 52.9, 62, 66.3, 136.5, 208.9, 334 | |||||||||
| 备注 Note | 性能参数及输出轴可以根据客户要求更改. The specifications and output shaft can be changed as customer's request. | |||||||||
| 包装信息 Packing detail | 纸箱 Carton | |||||||||
