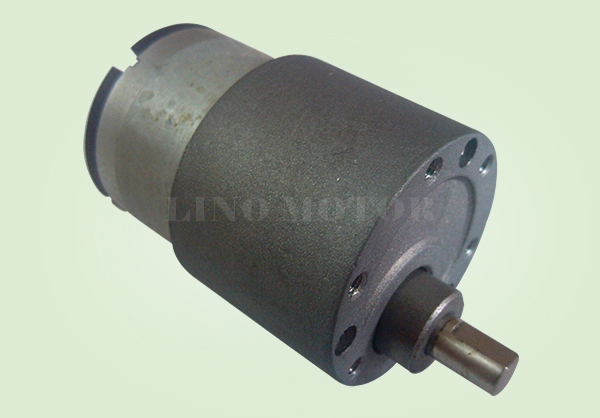

| Products' type: | DC geared motor |
| Model: | GM37 GM37.pdf |
| Sort: | Round shape DC geared motor |
| Typical applications: | Label printers、auto shutter,grill/oven、cleaning machine、garbage disposers、household appliances、vending machines、money detector、 automatic actuator、coffee machine、towel disposal、lighting、coin refund devices etc.. |
| Weight: | 190g (approx) |
| 型号 MODEL | 电压 VOLTAGE | 空载 AT NO LOAD | 最大效率点 AT MAXIMUM EFFICIENCY | 堵转 AT STALL | ||||||
| 转速 SPEED | 电流 CURRENT | 转速 SPEED | 电流 CURRENT | 转矩 TORQUE | 转矩 TORQUE | 电流 CURRENT | ||||
| VDC | RPM | A | RPM | A | mN.m | kg.cm | mN.m | kg.cm | A | |
| GM3750-385 | 24 | 107 | 0.08 | 86.7 | 0.342 | 513.226 | 5.237 | 2695 | 27.500 | 1.5 |
| 可配马达类型 Base motor option | RS360,RS365,RS380,RS385,RS390,RS395,RS540,RS545,RS50,RS555,RF500,RF520 | |||||||||
| 标准速比 Gear ratio option | 10(L=19); 20,30(L=21.5); 48.5,50,60,90(L=24); 150,180,270(L=26.5); 450,540,810(L=29); 1350,1620,2430 (L=31.5) | |||||||||
| 备注 Note | 性能参数及输出轴可以根据客户要求更改. The specifications and output shaft can be changed as customer's request. | |||||||||
| 包装信息 Packing detail | 纸箱 Carton | |||||||||
