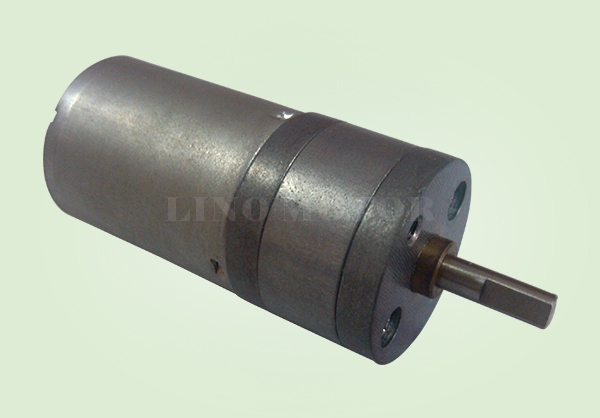

| Products' type: | DC geared motor |
| Model: | GM25 GM25.pdf |
| Sort: | Round shape DC geared motor |
| Typical applications: | Electronic lock, optical equipment, medical instrumentation, office machines, Stereo Equipment,household appliances,sexual equipments, Video game etc... |
| Weight: | 90g (approx) |
| 型号 MODEL | 电压 VOLTAGE | 空载 AT NO LOAD | 最大效率点 AT MAXIMUM EFFICIENCY | 堵转 AT STALL | ||||||
| 转速 SPEED | 电流 CURRENT | 转速 SPEED | 电流 CURRENT | 转矩 TORQUE | 转矩 TORQUE | 电流 CURRENT | ||||
| VDC | RPM | A | RPM | A | mN.m | kg.cm | mN.m | kg.cm | A | |
| GM25653-370 | 24 | 6.6 | 0.011 | 5.4 | 0.049 | 603.876 | 6.162 | 3273.2 | 33.400 | 0.215 |
| 可配马达类型 Base motor option | RC280,RF330,RF370 | |||||||||
| 标准速比 Gear ratio option | 9.7,12.7,16.6,21.3,27.9（L=19), 36.5,46.9,61.3(L=21), 80.3,103.1,134.9(L=23), 176.7,226.8,296.8(L=25), 388.7,498.9,653(L=27) | |||||||||
| 备注 Note | 性能参数及输出轴可以根据客户要求更改. The specifications and output shaft can be changed as customer's request. | |||||||||
| 包装信息 Packing detail | 纸箱 Carton | |||||||||
