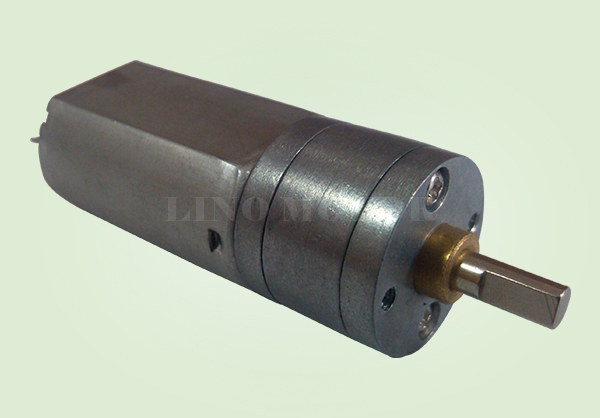

| Products' type: | DC geared motor |
| Model: | GM20 GM20.pdf |
| Sort: | Round shape DC geared motor |
| Typical applications: | Electronic lock, optical equipment, medical instrumentation, office machines, Stereo Equipment,household appliances,sexual equipments, Video Game etc... |
| Weight: | 55g (approx) |
| 型号 MODEL | 电压 VOLTAGE | 空载 AT NO LOAD | 最大效率点 AT MAXIMUM EFFICIENCY | 堵转 AT STALL | ||||||
| 转速 SPEED | 电流 CURRENT | 转速 SPEED | 电流 CURRENT | 转矩 TORQUE | 转矩 TORQUE | 电流 CURRENT | ||||
| VDC | RPM | A | RPM | A | mN.m | kg.cm | mN.m | kg.cm | A | |
| GM2025-130SH14230 | 6 | 293 | 0.055 | 241.5 | 0.235 | 28.518 | 0.291 | 161.7 | 1.650 | 1.1 |
| 可配马达类型 Base motor option | FF030,FF050,FF130,FF180 | |||||||||
| 标准速比 Gear ratio option | 10, 12.5, 25, 31.25 (L=16), 62.5, 78.125(L=17.5), 156.25, 195.3 (L=19) , 390, 625, 488.28(L=20.5) | |||||||||
| 备注 Note | 性能参数及输出轴可以根据客户要求更改. The specifications and output shaft can be changed as customer's request. | |||||||||
| 包装信息 Packing detail | 纸箱 Carton | |||||||||
