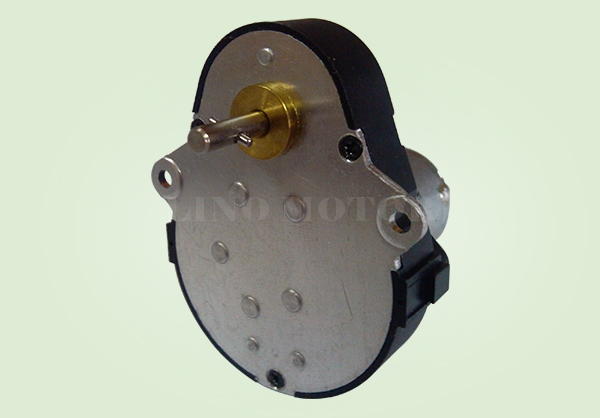

| Products' type: | DC geared motor |
| Model: | GM48P GM48P.pdf |
| Sort: | Pear shape DC geared motor |
| Typical applications: | Coffee machine, communications-equipment, ACU-RITE,induced garbage can, electronic lock, optical equipment, medical instrumentation, office equipment, household appliances,etc… |
| Weight: | 110g (approx) |
| 型号 MODEL | 电压 VOLTAGE | 空载 AT NO LOAD | 最大效率点 AT MAXIMUM EFFICIENCY | 堵转 AT STALL | ||||||
| 转速 SPEED | 电流 CURRENT | 转速 SPEED | 电流 CURRENT | 转矩 TORQUE | 转矩 TORQUE | 电流 CURRENT | ||||
| VDC | RPM | A | RPM | A | mN.m | kg.cm | mN.m | kg.cm | A | |
| GM48P600-370 | 24 | 6 | 0.015 | 4.57 | 0.048 | 1029 | 10.500 | 4312 | 44.000 | 0.153 |
| 可配马达类型 Base motor option | RS360,RS365,RF370,RS380,RS385,RS390,RS395,RF500,RF520 | |||||||||
| 标准速比 Gear ratio option | a:12.5,15,25,41.7(125/3),83.3(244/3),100,164.2,166.67(500/3), 246.3,308, 450， 985, 1846.875; b:34.6, 128.6, 400, 500, 600, 750, 2400, 4500 | |||||||||
| 备注 Note | 性能参数及输出轴可以根据客户要求更改. The specifications and output shaft can be changed as customer's request. | |||||||||
| 包装信息 Packing detail | 纸箱,尺寸:38X35.5X34CM;100台/箱;毛重:12Kg. Carton, Size: 38X35.5X34CM;100pcs/carton; G.W:12Kg. | |||||||||
