| Products' type: | AC geared motor |
| Model: | GM59SMS48500 GM59SMS48.pdf |

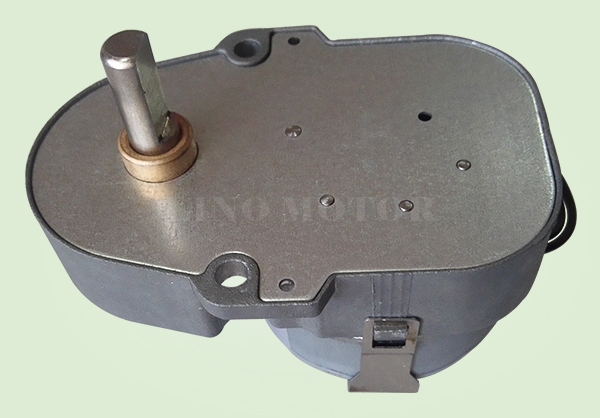

| Sort: | Pear shape AC synchronous geared motor |
| Typical applications: | Valves,coffee machine, communications-equipment, ACU-RITE,induced garbage can, electronic lock, optical equipment, medical instrumentation, office equipment, household appliances,etc… |
| Weight: | 306g (approx) |
| 参数 Specifications | 单位 UNIT | GM59SMS48500 | ||||||
| 额定电压 Voltage | VAC | 24; 110; 220 | ||||||
| 频率 Frequency | Hz | 50/60 | ||||||
| 输入功率 Input | W | <=3W | ||||||
| 电流 Current | A | 0.012(220V) | ||||||
| 转速范围 Speed range | RPM | 1/2600~4.7 | ||||||
| 速比范围 Gear ratio | 104.7~1302083.3 | |||||||
| 噪音 Noise | dB | <=60 | ||||||
| 绝缘耐压 Dielectric strength | AC1500V / 1SEC | |||||||
| 转向 Direction of rotation | CW；CCW； CW/CCW（FREE） | |||||||
| 备注 Note | 电压及输出轴可以根据客户要求更改. Voltage and output shaft can be changed as customer's request. | |||||||
| 包装信息 Packing detail | 纸箱,尺寸:52X36X23CM;60台/箱;毛重:22Kg. Carton, Size: 52X36X23CM;60pcs/carton; G.W:22Kg. | |||||||
